Whiteline Rear Subframe Align Lock Kit Bushing for NISSAN SKYLINE R32 R33 R34

Contents :

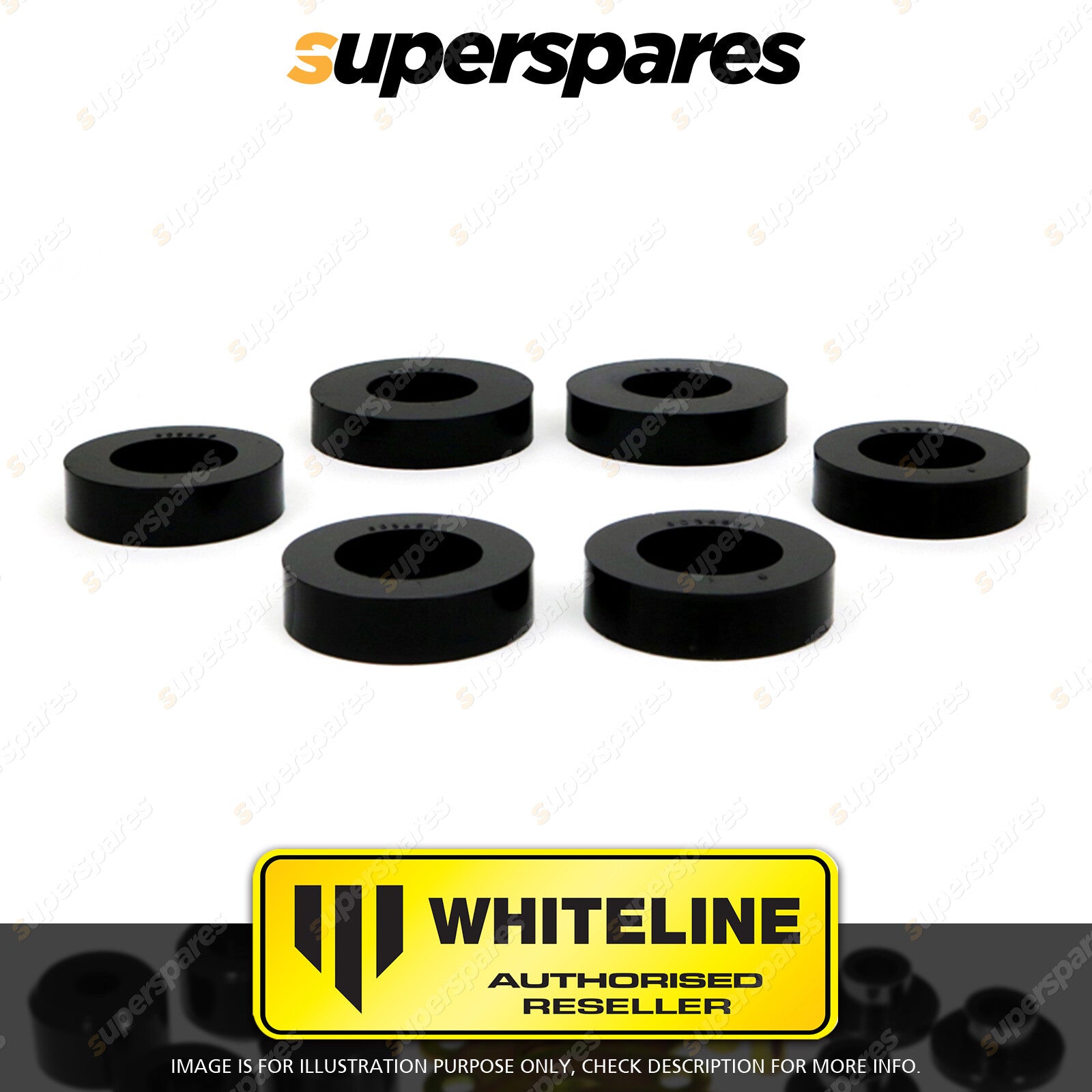

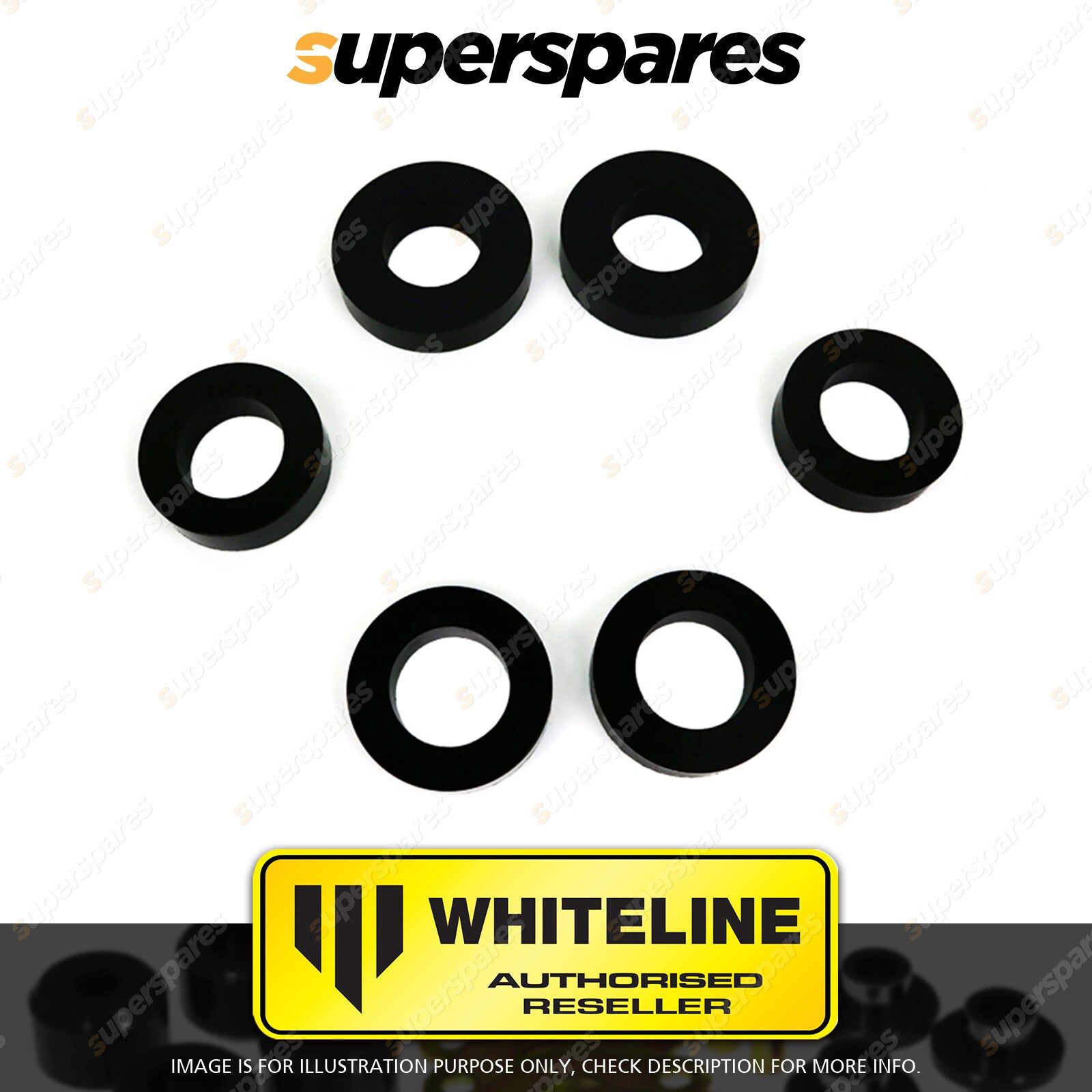

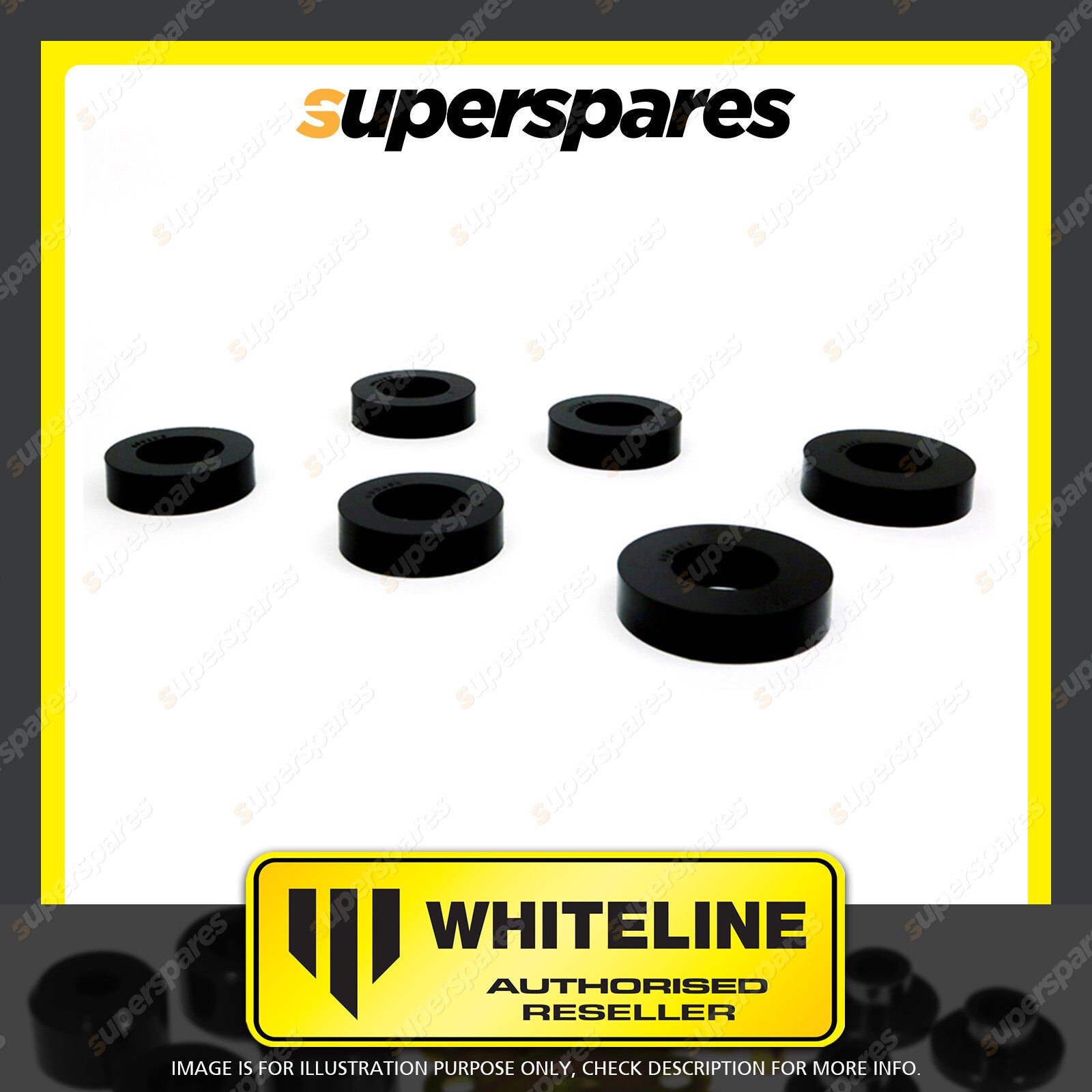

Whiteline Rear Subframe - align and lock kit bushing

Warranty : 3 Year / 60,000Kms

Kit Contents :

6 Bushings, Install Guide, Grease

Kit Specifications :

Bush Qty : 6
OD 1 : 80.2 mm ; OD 2 : 69.4 mm ; OD 3 : 69.6 mm
ID 1 : 39.4 mm ; ID 2 : 40.6 mm ; ID 3 : 40.6 mm
L 1 : 18.2 mm ; L 2 : 18.2 mm ; L 3 : 18.5 mm
Alignment Type : Anti Squat
Adjustment Type : Spacer
On Car Adjustable : No
Adjustment Notes : Allows Diff Angle Change & Subframe Lock

Note 1812: Allows diff angle change and subframe lock - suited for OE bushings

Whiteline Subframe - Align And Lock Kit Bushing

This easy to install kit is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By locating the rings in different planes it possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.

Features

• Engineered to alter/ eliminate unwanted bump steer, optimising the vehicles steering characteristics.
• Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
• Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
• Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
• Internal grease reservoirs provide continual self lubrication for optimum friction management.
• Specially bonded design for optimised strength typically required in high load bearing applications.
• Install guide included providing detailed instructions on how to install your new Whiteline purchase.
• This Whiteline kit is covered by a 3 Year / 60,000kms warranty.

Whiteline

Whiteline boasts a worldwide reputation as a leading manufacturer of replacement, enhancement and performance suspension components that deliver significant gains in vehicle balance, steering precision, grip levels and outright driving performance. Consisting of adjustable sway bars (also known as Stabilizer Bars or Anti Roll Bars), chassis bracing, alignment products and chassis control bushing kits, Whiteline products provide automotive workshops, tuners, enthusiasts and racers with innovative solutions to suspension and handling problems while delivering proven performance & problem solving outcomes for many of the worlds vehicle platforms.
